ISO9001-2008 Certified Henan Refractory High Alumina Lining Brick for Ball Mill Grinding

Product Categories
Henan Hongtai Kiln Refractory Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

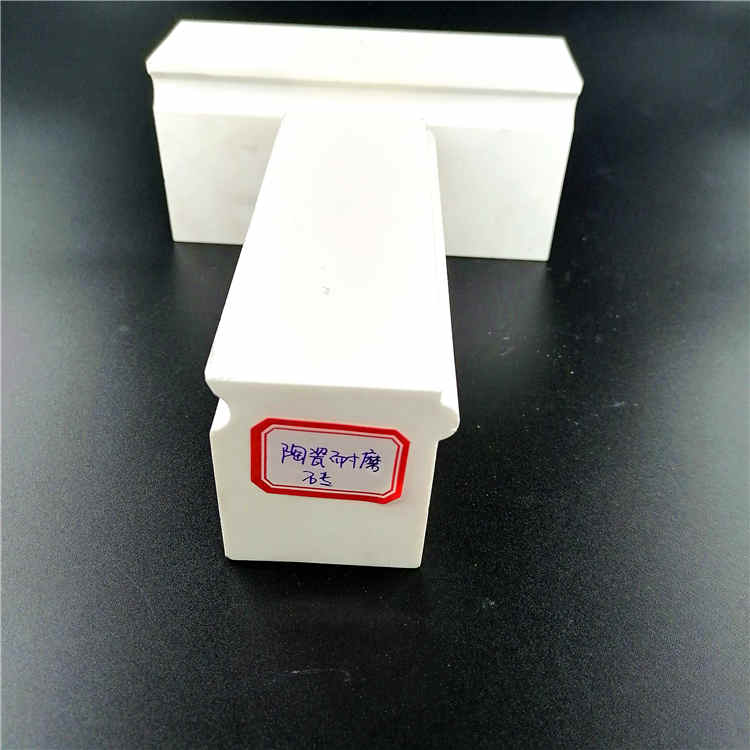

ISO9001-2008 Certified Henan Refractory High Alumina Lining Brick for Ball Mill Grinding

Place of Origin : Henan, China

Shape : Block

Material : High purity alumina power

SiO2 Content (%) : 0-23

Al2O3 Content (%) : 70-95

MgO Content (%) : International standard

CaO Content (%) : International standard

Refractoriness (Degree) : Common (1580°< Refractoriness< 1770°)

CrO Content (%) : International standard

SiC Content (%) : International standard

Model Number : 75, 92, 95, 97, 99

Brand Name : Hongtai

Processing Service : Punching, Cutting, Moulding

Raw material : High Alumina Bauxite, alumina power

Product name : High alumina lining brick

Application : ball mill body

Color : White

Hardness(Moh's) : 8-9

Sample : Avaliable

Bulk Density(g/cm3) : 3-3.6

Size : Straight;Trapezoidal;Semi-straight;Semi-trapezoidal;Flake

Usage : ball mill lining

Certificate : ISO9001-2008

Packaging Details : 1.Pallet+Paper or Steel angle bead+Paper board +Plastic or Steel belt +Plastic film
(1)Wooden pallet size:Usually0.92*0.92m(standard brick),but 1*1m (special shape brick) at most,
(2)Load weight of each pallet:Usually 1.5-1.7Tons, max 2.0 Tons.
(3

Supply Ability : 3000 Ton/Tons per Month

MOQ : 20 tons

Price : $300.00 - $800.00/tons

Contact Now

Product Description

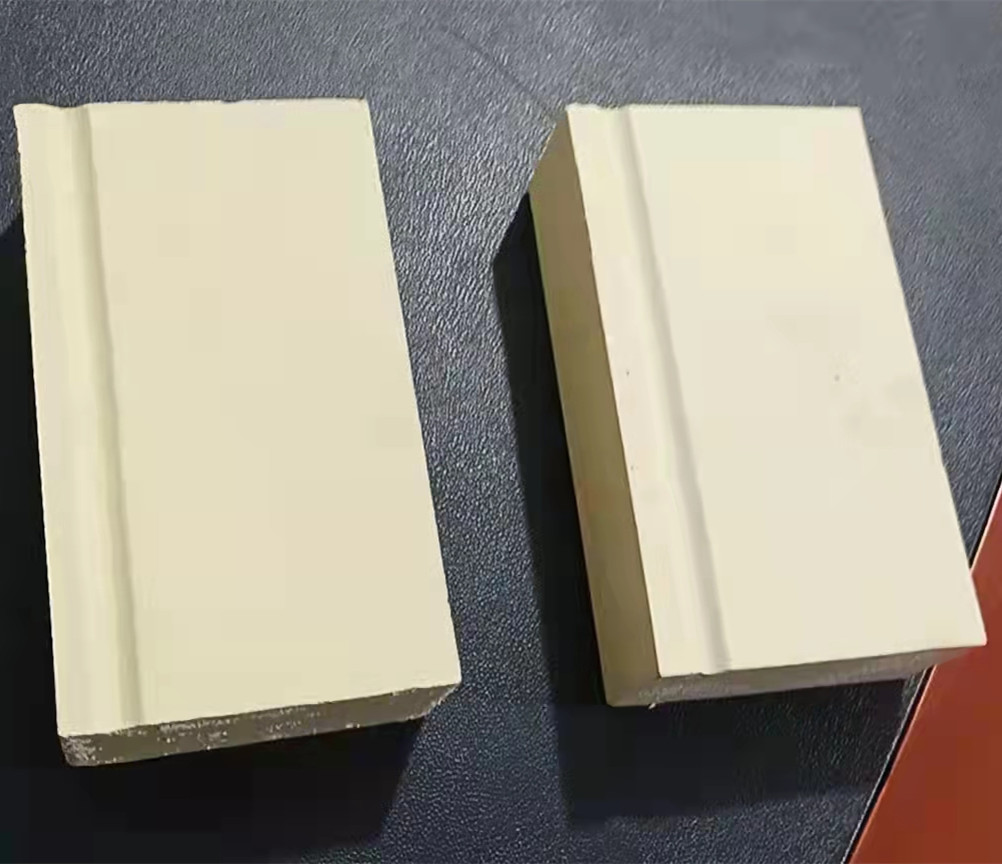

ISO9001-2008 Certified Henan Refractory High Alumina Lining Brick for Ball Mill Grinding

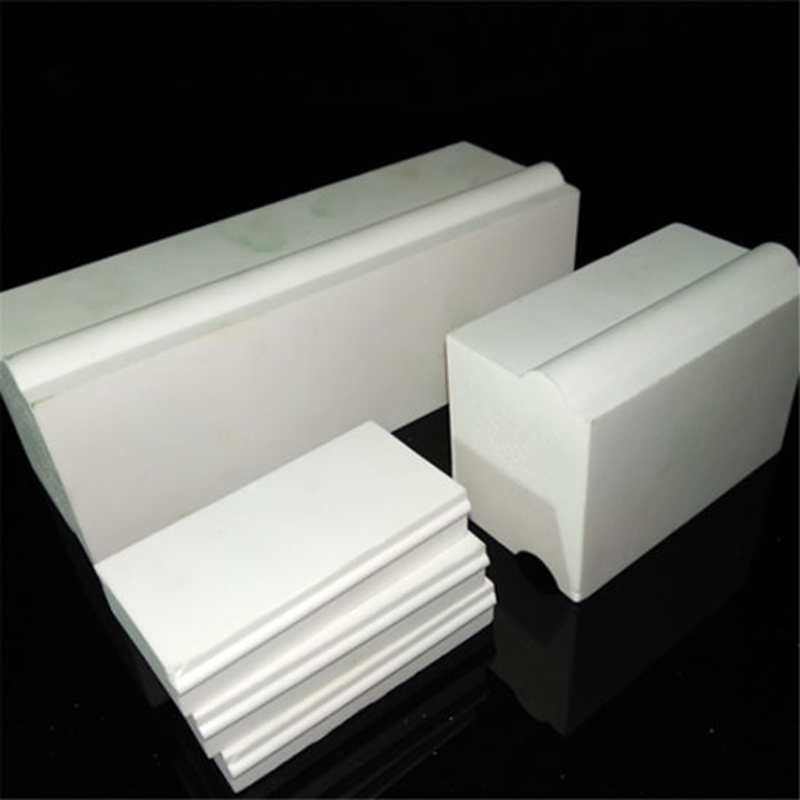

ISO9001-2008 Certified Henan Refractory High Alumina Lining Brick for Ball Mill Grinding
ISO9001-2008 Certified Henan Refractory High Alumina Lining Brick for Ball Mill Grinding
ISO9001-2008 Certified Henan Refractory High Alumina Lining Brick for Ball Mill Grinding

Henan refractory manufacturer factory price Wear-resistant 70 75 92 95 high alumina lining brick for ball mill grinding

Wear-resistant high alumina lining brick for ball mill grinding are also called alumina ceramic lining bricks, ball mill lining bricks, ball mill lining plates, and wear-resistant ceramic lining bricks.

High Alumina lining brick is high wear resistance, acid and alkli resistance, effectively prolong the service life of equipment and considered to be the best choice of anti-wearing and anti-corrosion material; Wear resistance of ceramic is 266 times than that of special manganese, 171.5 times to high chrome cast iron; Hardness is much higher than that of wear-resistant steel and stainless steel.

This product are featured by high density and hardness, low wear lost, corrosion-resistance etc. They are the perfect
high-efficient grinding media for milling glaze/frit, pigment, ceramic materials, and various mine ore powder, they are using
ceramics, cements, paints, refractories, inorganic mineral powders etc...

Specification

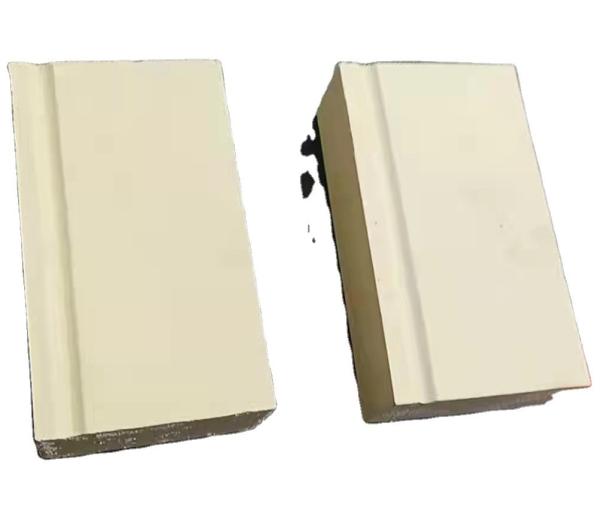

ISO9001-2008 Certified Henan Refractory High Alumina Lining Brick for Ball Mill Grinding
Henan refractory manufacturer factory price Wear-resistant 70 75 92 95 high alumina lining brick for ball mill grinding

Features of high alumina lining brick

1.Good wear-resistant,Corrosion resistant
2.Heat-resistance
3.The service life can be at least five years, which is 15% more efficient than a rubber liner.
4.Decreases the pollution to the grinding material and increases the capacity of mill ball, lowing the cost.

Advantages of high alumina lining brick

1) Great Hardness
Have a Rockwell hardness of up to 90 which is well above that of wear-resistant steel and stainless steel.
2) Excellent wear resistance
Its wear-resistance is equivalent to 266 times that of manganese steel and 171.5 times that of high chromium cast iron. Under the

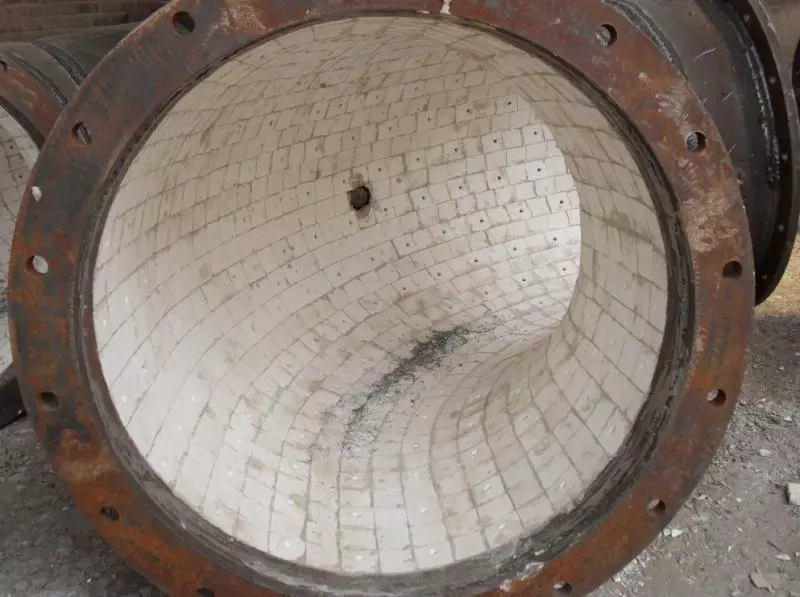

same working conditions, the service life of pipes lined with high alumina ceramics can be prolonged at least 10 times.
3) Corrosion resistance
Its extremely high stability of molecular structure ensures its resistance to corrosion from various acid and alkali mediums.
4) Light weight
Its density is 3.6 g/cm3, only half of steel, making installation more convenient.

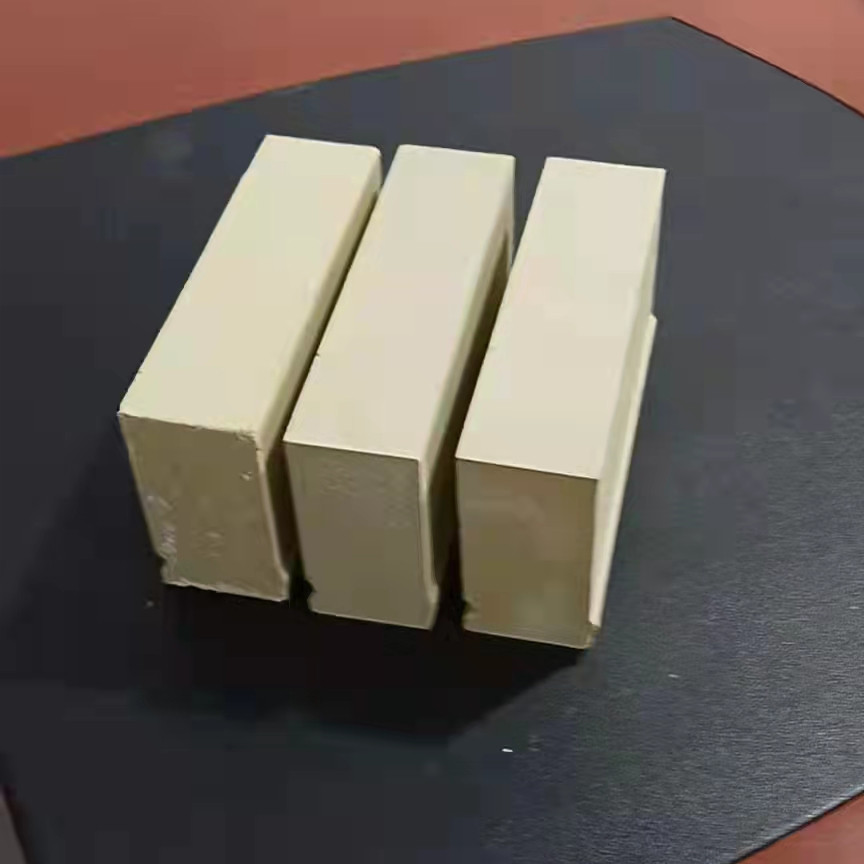

ISO9001-2008 Certified Henan Refractory High Alumina Lining Brick for Ball Mill Grinding
1. Wear-resistant high alumina Lining brick for Ball Grinding Mill (Thinkness less than 25mm)
Performance Index
92 Series
95 Series
97 Series
99 Series
AL2O3 (%)
>92
>95
>97
>99
Moh's Hardness
9
9
9
9
Moisture Content (%)
<0.02
<0.02
<0.02
<0.02
Fracture Toughness (n/mm)
40
42
44
48
Bending Strength (Mpa)
255
275
285
300
Bulk Density (g/cm3)
>3.63
>3.68
>3.73
>3.83
Item
Length (mm)
Width (mm)
Height (mm)
Remarks
10*10
10
10
3--10
17.5*17.5
17.5
17.5
4--10
23.7*23.7
23.7
23.7
5--15
Wear-risisting Plain Brick
50*25
50
25
5--10
Wear-risisting Plain Brick
50*50
50
50
5--15
Wear-risisting Plain Brick
100*100
100
100
6.5--15
Wear-risisting Plain Brick
120*80
120
80
6--20
Wear-risisting Plain Brick
150*60
150
60
10--25
Wear-risisting Plain Brick
150*100
150
100
6--25
Wear-risisting Plain Brick
150*100
150
100
12--50
Wear-risisting Plain Brick
2. Wear-resistant high alumina Lining brick for Ball Grinding Mill (Thinkness more than 40mm)
Performance Index
75 Series
92 Series
95 Series
97 Series
AL2O3 (%)
>75
>92
>95
>97
FE2O3 (%)
<0.6
<0.3
<0.2
<0.1
Moh's Hardness
7.5
8
9
9
Moisture Content (%)
<0.02
<0.02
<0.02
<0.02
Bulk Density (g/cm3)
>3
>3.63
>3.68
>3.73
Wearing Loss (%)
<0.2
<0.1
<0.1
<0.1
Item
Length (mm)
Width (mm)
Height (mm)
End flat brick
150
50
40/50/60/70/77/90
Circle brick
150
50/ 45
40/50/60/70/77/90
Half end flat brick
75
50
40/50/60/70/77/90
Half circle brick
75
50/ 45
40/50/60/70/77/90
Flake brick
150
25/ 22.5
40/50/60/70/77/90
3. Wear-resistant high alumina Lining brick for Ball Grinding Mill
Item
Length (mm)
Width(mm)
Height (mm)
80*50*55
55
50
80
110
75
45/ 41
110
110
37.5
45/41
110
Manufacturing Technique

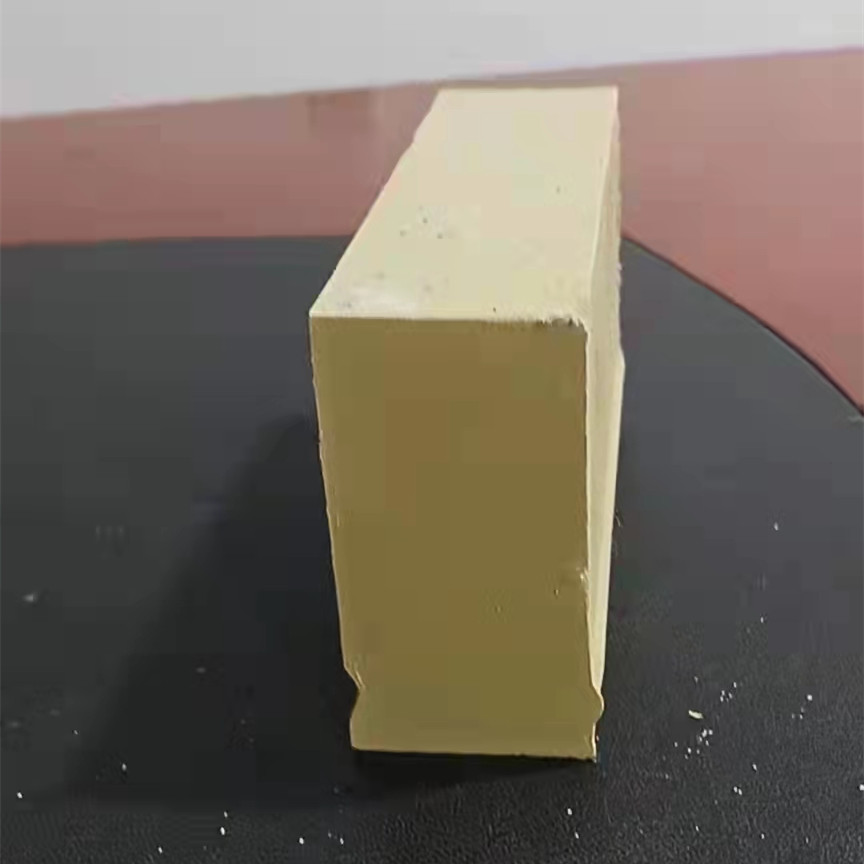

ISO9001-2008 Certified Henan Refractory High Alumina Lining Brick for Ball Mill Grinding
ISO9001-2008 Certified Henan Refractory High Alumina Lining Brick for Ball Mill Grinding
Henan refractory manufacturer factory price Wear-resistant 70 75 92 95 high alumina lining brick for ball mill grinding
Wear-resistant high alumina lining brick are widely used in the chemical, ceramic, cement and mining industries. Common ones are quartz sand mill, kaolin, silica powder and so on. Choose the right product according to the different force products in different industries.

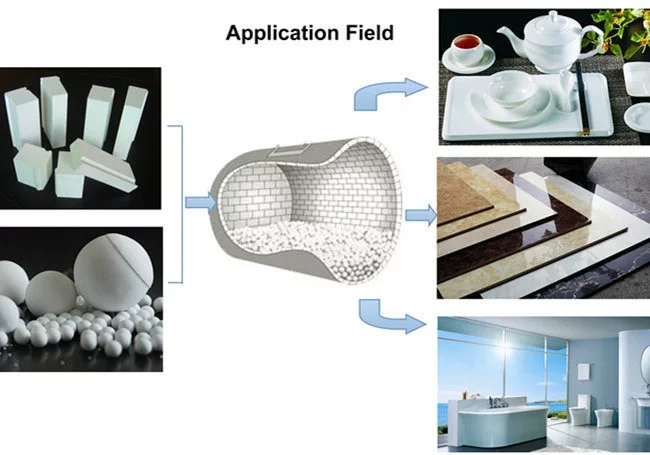

Application of Wear-resistant high alumina lining brick for Ball Grinding Mill
·Ceramics,
·mines and other grinding equipment lining Material transfer equipment,
·inside and outside surface of powder separating equipment on iron and steel works
·Thermal and power plants
·Coals and cements industries,etc.

According to different customers' needs, raw materials of the products are strictly controlled in order to ensure that the products not only takes on good wear-resistant, corrosin-resistant, but also rich sizes. The service life can be extended at least five years, which is 15% more efficient than a rubber liner. Also, it prevents pollution to the grinded material and increases the capacity of mill ball, resulting in cost cut.
Packing & Delivery
ISO9001-2008 Certified Henan Refractory High Alumina Lining Brick for Ball Mill Grinding
ISO9001-2008 Certified Henan Refractory High Alumina Lining Brick for Ball Mill Grinding

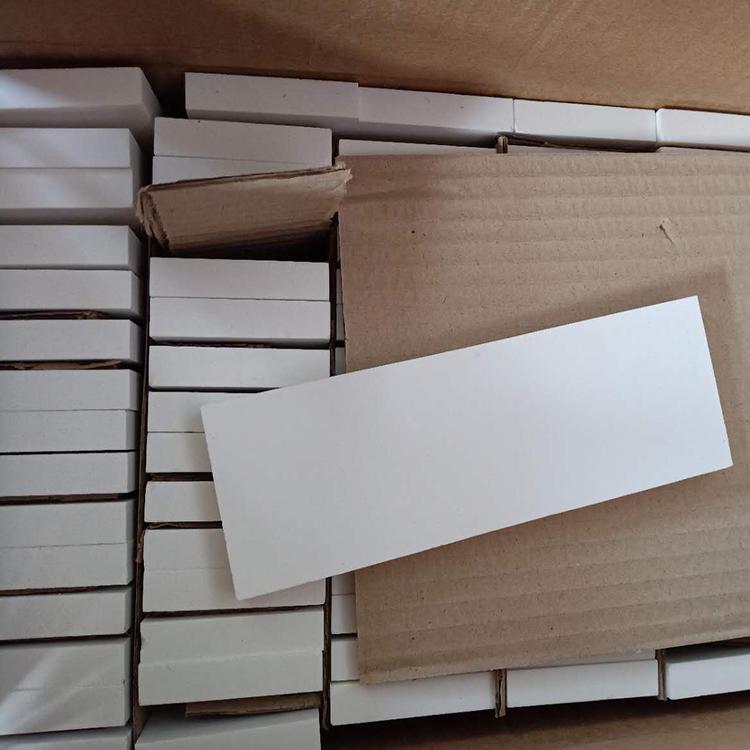

Packing for high alumina Lining brick for ball mill
Wear-resistant Lining Bricks for Ball Grinding Mill are dispatched in strong carton with seperate paper card as buffering,
palletised and shrink-wrapped for better conservation,being prepared for their immediate delivery.
Normally the standard package is 15-25KG/carton, 1-1.5tons/pallet, 20-25tons for 20'container

Shipping for high alumina lining brick for ball mill
1.FEDEX/DHL/UPS/TNT for samples.
2.By Sea for batch goods.
3.Customers specifying freight forwarders or negotiable shipping methods!
4.Delivery Time of alumina ceramic lining brick:
(1)Samples:3 days for common shape samples;15 days for special shape samples.
(2)Batch goods:Within 7-10 days for in stock bricks from ordering shipping space to deliver goods and within 20-30 days for NO in stock bricks.
Payment Terms
(1)T/T, Western Union,LC;
(2)Usually 30% deposits,70% balance to be paid before delivery or against copy of BL or negotiations
Company Profile
Henan hongtai kiln refractory co., LTD. Is well aware that there are thousands of demands from customers, which can be summarized in four aspects: reliable quality, timely delivery, reasonable price and considerate service.The company will continue to adhere to the corporate spirit of "contributing to society and serving customers" and the business philosophy of "mutual benefit, win-win, integrity, efficiency, preciseness and responsibility".Our company is willing to develop a wide range of technical exchanges with colleges and universities and colleagues from all walks of life at home and abroad in a flexible and diversified way.

Henan hongtai kiln refractory co., LTD. Main products are high alumina brick, clay brick, fused zirconium corundum brick,
fireproof ball lightweight insulation brick, ceramic lining brick, wear-resistant pouring material, corundum pouring material, low cement high strength pouring material, impermeable material, self-flowing material, plastic material, and various types of refractory materials.

Henan hongtai kiln refractory co., LTD. : "quality first, reputation first, customer first: it is our aim."Scientific management,
strong technical force, perfect testing means, advanced technological equipment and stable product quality are the guarantee of quality service.Henan hongtai kiln refractories co., LTD sincerely hopes to cooperate with you hand in hand and in good faith.
ISO9001-2008 Certified Henan Refractory High Alumina Lining Brick for Ball Mill Grinding
Customer Photos
ISO9001-2008 Certified Henan Refractory High Alumina Lining Brick for Ball Mill Grinding
Hongtai Kiln Refractory has professional sales and after-sale service team who provide customers all-around service about product selection, transportation, installation and operation technology training etc. Now we have established cooperation relationship with many science and research units and our products have been sold to Vietnam, Thailand, Malaysia, South Korea, Pakistan, Kazakhstan, India, Japan, Indonesia, Malaysia, Germany, Italy, Mongolia, Russia, Argentina, Colombia, Egypt, South Africa and etc.
We has 20 years experience on producing the high alumina lining brick for ball mill.
