Product Description

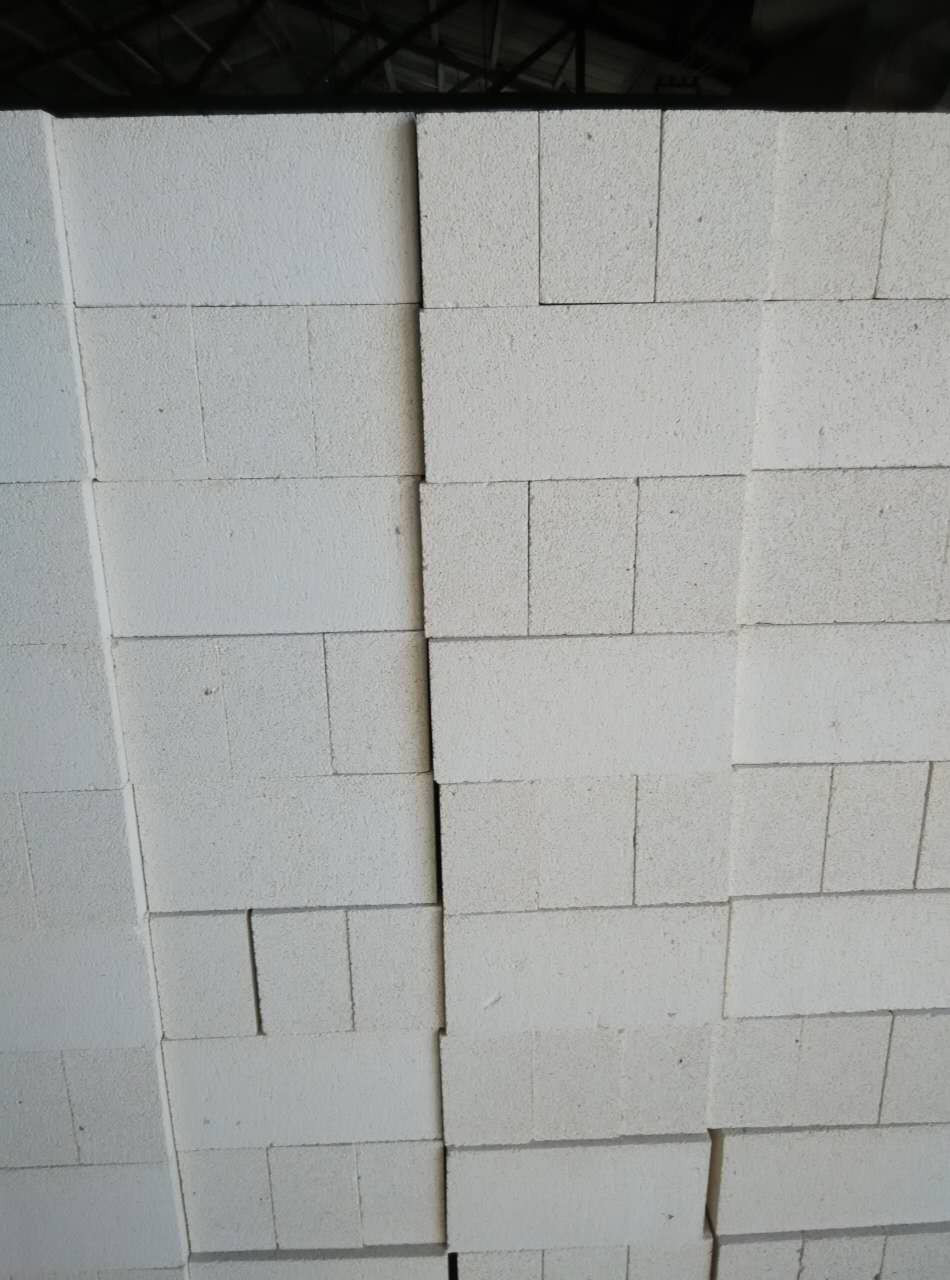

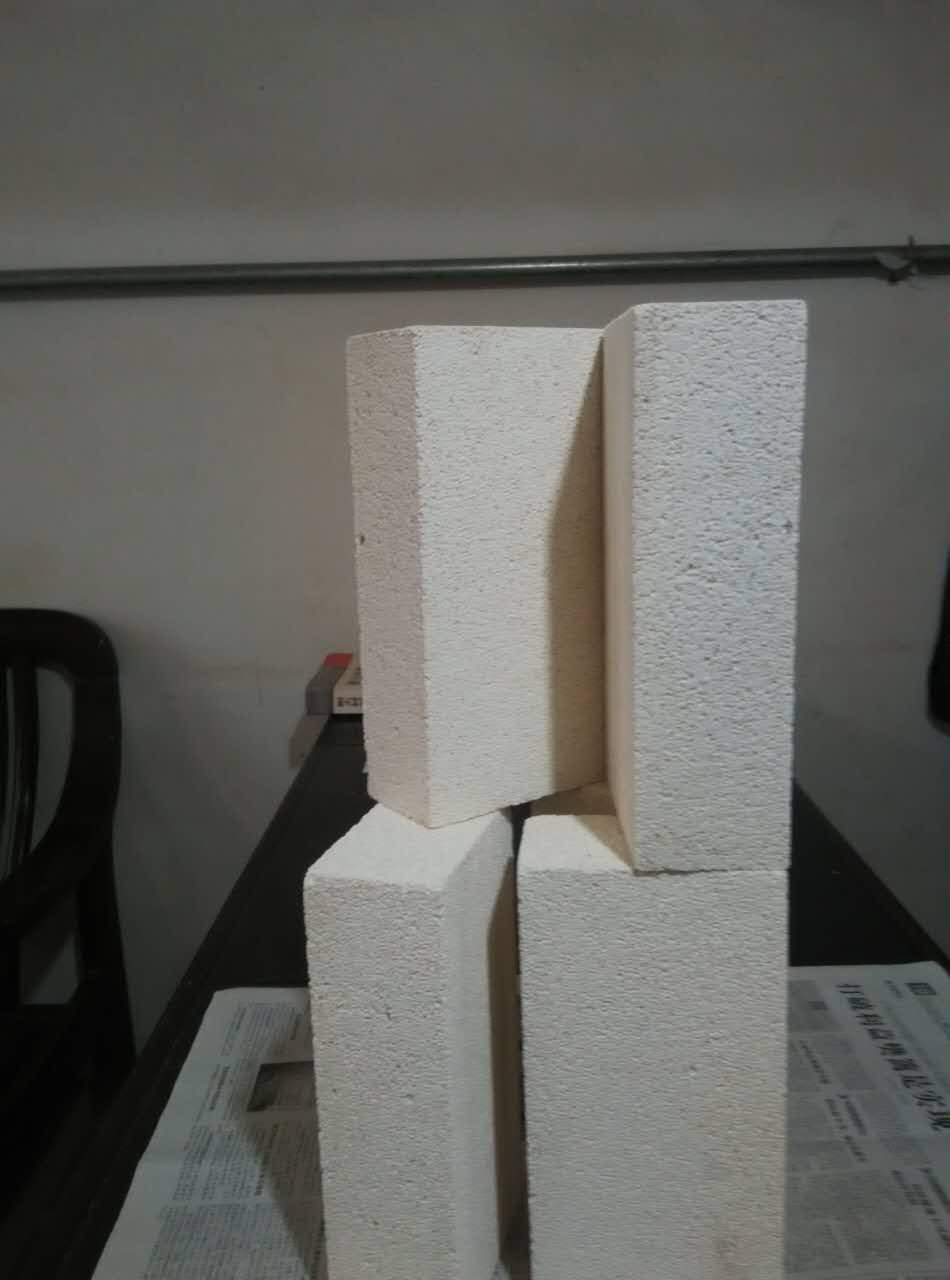

Refractory mullite Insulating Firebricks /good thermal insulation bricks
Refractory mullite Insulating Firebricks are made from good quality and superpure raw materials, with strictly classified fillings according to their grades. These fillings can form a uniform pore structure after burnt during the process of manufacture. Each grade of products has unique design to meet different thermal, physical and chemical demands.
The total weight of the furnace body and walls thickness can be reduced effectively,thermal efficiency and working condition can be improved,energy consumption can be lowered,produtivity and significant economic results can be achieved.
Feature of Refractory mullite Insulating Firebricks
·Light weight brick good for energy conservation.
·Low thermal conductivity and excellent heat resistance.
·Good volume stability at high temperature.
Production Process of Refractory mullite Insulating Firebricks brick:Crushing→Mixing→Shaping→Drying→Firing→Inspection→Packaging and Shipment
Technical Data
Refractory mullite Insulating Firebricks /good thermal insulation bricks
Physical and Chemical Indexes of Light Weight Refractory mullite Insulating Firebricks
| Brands | AL2O3%≥ | FE2O3≤ | BD G/CM3≤ | CCS MPA≥ | PLC ℃X H≤1.0% | TCS W/M.K≤ |
| 400℃ | 600℃ | 900℃ |
| MD-0.5 | 45 | 0.8 | 0.5 | 2 | 1350×12 | 0.18 | 0.22 | 0.26 |
| MD-0.6 | 55 | 0.8 | 0.6 | 2.5 | 1350×12 | 0.26 | 0.3 | 0.32 |
| MD-0.8 | 65 | 0.7 | 0.8 | 3 | 1450×12 | 0.28 | 0.32 | 0.36 |
| MD-1.0 | 72 | 0.6 | 1 | 4 | 1450×12 | 0.3 | 0.35 | 0.4 |
B C serises | Item | JM23 | JM26 | JM28 | JM30 |
| AL2O3(%) | 38-44 | 50-58 | 65-70 | 70-73 |
| Fe2O3(%) | 1 | 0.9 | 0.8 | 0.7 |
| Classification Temperature (℃) | 1350 | 1430 | 1540 | 1600 |
| Bulk Density (g/cm3) | 0.8-1 | 0.8-1 | 0.8-1 | 0.8-1 |
| Reheating Linear Change (%) | 1250℃ | 1400℃ | 1500℃ | 1550℃ |
| CT-30 ℃X 8H | -0.5 | -0.5 | -0.5 | -0.5 |
| Cold Crushing Strength (Mpa) | 3.0-4.5 | 3.0-4.5 | 3.0-4.5 | 3.0-4.5 |
| Modulus of Rupture (Mpa) | 1.5 | 1.7 | 1.8 | 2 |
| Thermal conductivity400℃(W/m.k) | 0.25 | 0.27 | 0.32 | 0.41 |
| Thermal Expansion1000℃(%) | 0.5 | 0.7 | 0.8 | 0.9 |
| Item | B-1 | C-1 | C-2 |
| AL2O3(%) | 25-30 | 35-40 | 45-50 |
| Fe2O3(%) | 2 | 1 | 1 |
| Classification Temperature (℃) | 1000 | 1300 | 1400 |
| Bulk Density (g/cm3) | 0.8-1 | 0.8-1 | 0.8-1 |
| Cold Crushing Strength (Mpa) | 2-2.5 | 2.5-3.5 | 3.0-4.5 |
| Thermal conductivity400℃(W/m.k) | 0.17 | 0.23 | 0.25 |
The technical data pertains to machine pressed standard bricks in compliance with the testing standard. These data are typical approximate guide value. Not to be construed as a binding specification.Size tolerance ±1.% or 1.5mm whichever is greater.Magnesia Carbon Bricks with properties of higher values available where applications require the same.Shapes&Size
What is the Shapes &Sizes of our Refractory mullite Insulating Firebricks ?
| Straight |
Split |
Arch |
Wedge |
Tile |
Other Shape |
L×W×H(mm)
230×114×65
230×114×75 |
L×W×H (mm)
230×114×25
230×114×32
230×114×37
230×114×50 |
L×W×H/h(mm)
230×114×65/45
230×114×65/55
230×114×75/45
230×114×75/55
230×114×75/65 |
L×W×H/h (mm)
230×114×65/45
230×114×65/55
220×114×75/45
220×114×75/55
220×114×75/65 |
L×W×H (mm)
230×230×38
230×230×50
230×230×65
230×230×75
|
Key brick,
Skew brick,
Soap,
Checker,
Neck,
Taper, |
We also can make Refractory mullite Insulating Firebricks according to customers' drawing and requirements. |
Applications
Refractory mullite Insulating Firebricks /good thermal insulation bricks
Applications of Refractory mullite Insulating Firebricks
Refractory mullite Insulating Firebricks refractory material can be used in linings or heat-insulating materials of the industries,
such as, ethylene pyrolysis furnaces, tubular furnaces, reforming furnaces of synthetic ammonia, gas generators and high-temperature shullte kilns, etc
Shipping
Refractory mullite Insulating Firebricks /good thermal insulation bricks
Shipping of Refractory mullite Insulating Firebricks
1. FEDEX/DHL/UPS/TNT for samples.
2. By Sea for batch goods.
3. Customers specifying freight forwarders or negotiable shipping methods.
4. Delivery Time:3 days for common shape samples;15 days for special.
5.shape samples.Within 30 days for batch goods.
Payment and Package
Refractory mullite Insulating Firebricks /good thermal insulation bricks
1. Payment: T/T, Western Union,LC; Usually 30% deposits,70% balance before delivery or negotiations to solve.
2. MOQ: Usually 1Tons,Customers can order certain PCS for Refractory mullite Insulating Firebricks .
3. Quality Warranty: 1 years.
4. Package Informations:

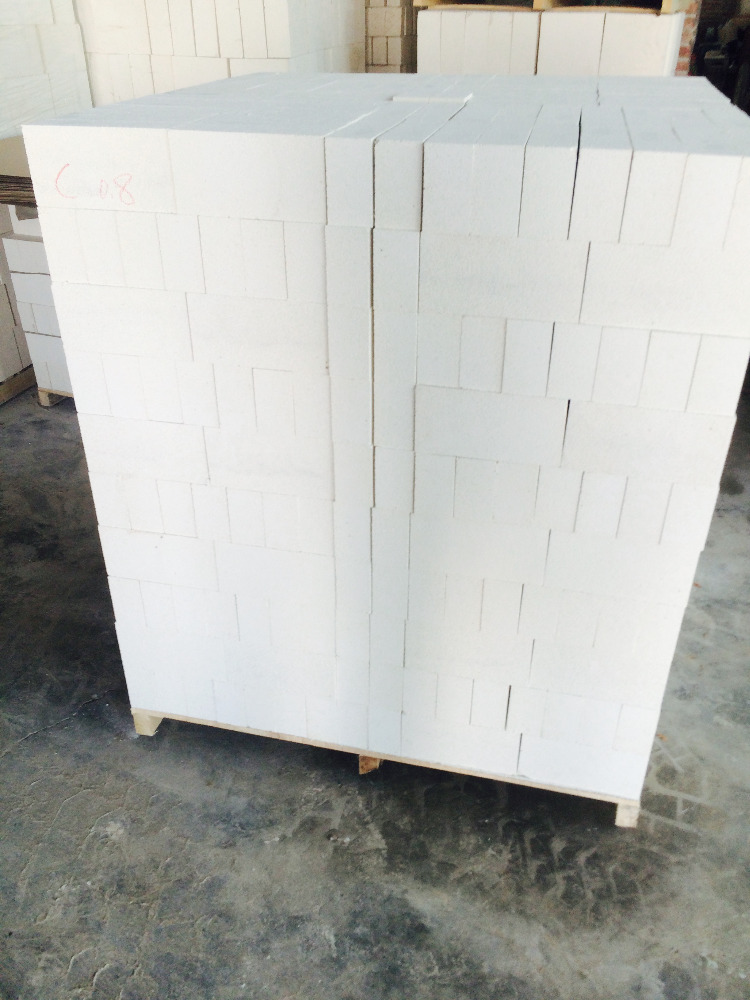

(1)Wooden pallet size:930*930mm,Load weight of each pallet:1-1.5 Tons.
(2)20 Foot Container can be loaded 25Tons,40 Foot Container can be loaded 28Tons.
Company Information
Refractory mullite Insulating Firebricks /good thermal insulation bricks
Our Competitive Advantage:
1.Competitive Price. Make the products competitive in your market.
2.Abundant Experience. Prevent cracks and twist in magnesia carbon bricks.
3.Different Moulds. Save mould fees for you.
4.Strict Quality Control. Meet clients’ quality requirement.
5.Large stocks. Guarantee prompt delivery.
6.Professional Packing. Avoid damage and secure the goods in transportation.
