Product Description

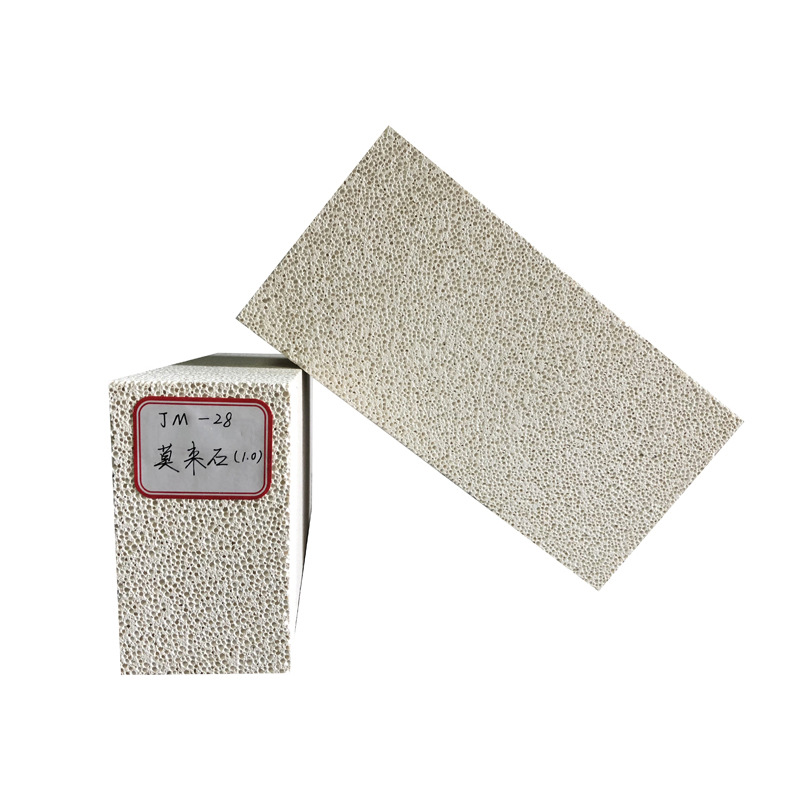

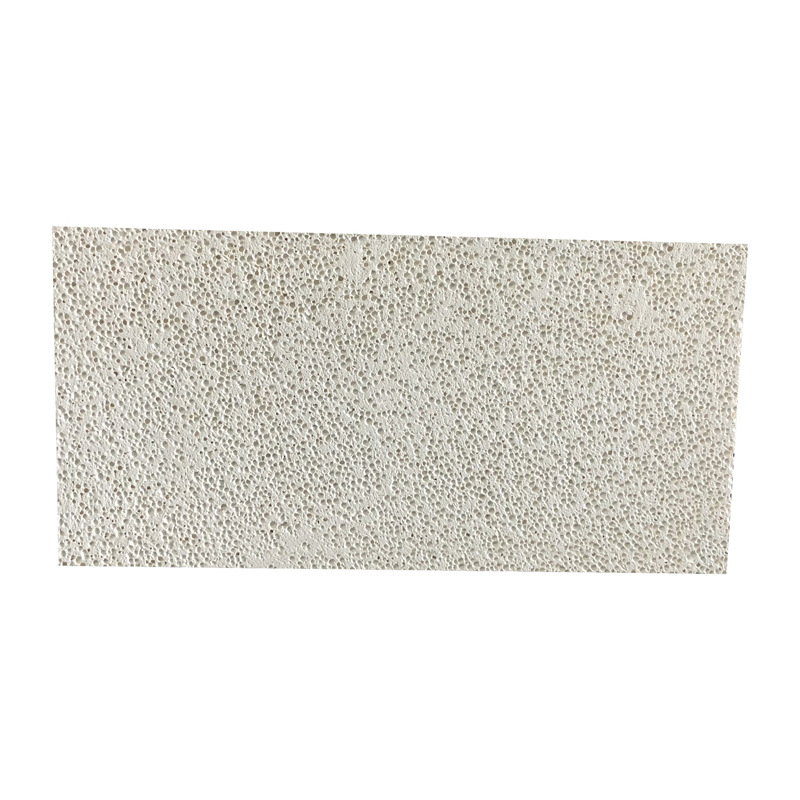

Morgan light weight TJM Insulation Brick for furnace insulation
mullite insulation bricks are made from good quality and superpure raw materials, with strictly classified fillings according to their grades. These fillings can form a uniform pore structure after burnt during the process of manufacture. Each grade of products has unique design to meet different thermal, physical and chemical demands.
The total weight of the furnace body and walls thickness can be reduced effectively,thermal efficiency and working condition can be improved,energy consumption can be lowered,produtivity and significant economic results can be achieved.
Feature of Light Weight Mullite Insulation Refractory Brick
·Light weight brick good for energy conservation.
·Low thermal conductivity and excellent heat resistance.
·Good volume stability at high temperature.
Production Process of Light Weight Mullite Insulation Refractory Brick brick:Crushing→Mixing→Shaping→Drying→Firing→Inspection→Packaging and Shipment
Technical Data
Morgan light weight TJM Insulation Brick for furnace insulation
Physical and Chemical Indexes of Light Weight Mullite Insulation Brick
| Brands | AL2O3%≥ | FE2O3≤ | BD G/CM3≤ | CCS MPA≥ | PLC ℃X H≤1.0% | TCS W/M.K≤ |
| 400℃ | 600℃ | 900℃ |
| MD-0.5 | 45 | 0.8 | 0.5 | 2 | 1350×12 | 0.18 | 0.22 | 0.26 |
| MD-0.6 | 55 | 0.8 | 0.6 | 2.5 | 1350×12 | 0.26 | 0.3 | 0.32 |
| MD-0.8 | 65 | 0.7 | 0.8 | 3 | 1450×12 | 0.28 | 0.32 | 0.36 |
| MD-1.0 | 72 | 0.6 | 1 | 4 | 1450×12 | 0.3 | 0.35 | 0.4 |
B C serises | Item | JM23 | JM26 | JM28 | JM30 |
| AL2O3(%) | 38-44 | 50-58 | 65-70 | 70-73 |
| Fe2O3(%) | 1 | 0.9 | 0.8 | 0.7 |
| Classification Temperature (℃) | 1350 | 1430 | 1540 | 1600 |
| Bulk Density (g/cm3) | 0.8-1 | 0.8-1 | 0.8-1 | 0.8-1 |
| Reheating Linear Change (%) | 1250℃ | 1400℃ | 1500℃ | 1550℃ |
| CT-30 ℃X 8H | -0.5 | -0.5 | -0.5 | -0.5 |
| Cold Crushing Strength (Mpa) | 3.0-4.5 | 3.0-4.5 | 3.0-4.5 | 3.0-4.5 |
| Modulus of Rupture (Mpa) | 1.5 | 1.7 | 1.8 | 2 |
| Thermal conductivity400℃(W/m.k) | 0.25 | 0.27 | 0.32 | 0.41 |
| Thermal Expansion1000℃(%) | 0.5 | 0.7 | 0.8 | 0.9 |
| Item | B-1 | C-1 | C-2 |
| AL2O3(%) | 25-30 | 35-40 | 45-50 |
| Fe2O3(%) | 2 | 1 | 1 |
| Classification Temperature (℃) | 1000 | 1300 | 1400 |
| Bulk Density (g/cm3) | 0.8-1 | 0.8-1 | 0.8-1 |
| Cold Crushing Strength (Mpa) | 2-2.5 | 2.5-3.5 | 3.0-4.5 |
| Thermal conductivity400℃(W/m.k) | 0.17 | 0.23 | 0.25 |
The technical data pertains to machine pressed standard bricks in compliance with the testing standard. These data are typical approximate guide value. Not to be construed as a binding specification.Size tolerance ±1.% or 1.5mm whichever is greater.Magnesia Carbon Bricks with properties of higher values available where applications require the same.Shapes&Size
What is the Shapes &Sizes of our Light Weight Mullite Insulation Refractory Brick?
| Straight |
Split |
Arch |
Wedge |
Tile |
Other Shape |
L×W×H(mm)
230×114×65
230×114×75 |
L×W×H (mm)
230×114×25
230×114×32
230×114×37
230×114×50 |
L×W×H/h(mm)
230×114×65/45
230×114×65/55
230×114×75/45
230×114×75/55
230×114×75/65 |
L×W×H/h (mm)
230×114×65/45
230×114×65/55
220×114×75/45
220×114×75/55
220×114×75/65 |
L×W×H (mm)
230×230×38
230×230×50
230×230×65
230×230×75
|
Key brick,
Skew brick,
Soap,
Checker,
Neck,
Taper, |
We also can make mullite insulation brick according to customers' drawing and requirements. |
Applications
Morgan light weight TJM Insulation Brick for furnace insulation
Applications of Light Weight Mullite Insulation Refractory Brick
Mullite insulation bricks refractory material can be used in linings or heat-insulating materials of the industries,
such as, ethylene pyrolysis furnaces, tubular furnaces, reforming furnaces of synthetic ammonia, gas generators and high-temperature shullte kilns, etc
Shipping
Morgan light weight TJM Insulation Brick for furnace insulation
Shipping of Light Weight Mullite Insulation Refractory Brick
1. FEDEX/DHL/UPS/TNT for samples.
2. By Sea for batch goods.
3. Customers specifying freight forwarders or negotiable shipping methods.
4. Delivery Time:3 days for common shape samples;15 days for special.
5.shape samples.Within 30 days for batch goods.
Payment and Package
Morgan light weight TJM Insulation Brick for furnace insulation
1. Payment: T/T, Western Union,LC; Usually 30% deposits,70% balance before delivery or negotiations to solve.
2. MOQ: Usually 1Tons,Customers can order certain PCS for mullite insulation brick.
3. Quality Warranty: 1 years.
4. Package Informations:
(1)Wooden pallet size:930*930mm,Load weight of each pallet:1-1.5 Tons.
(2)20 Foot Container can be loaded 25Tons,40 Foot Container can be loaded 28Tons.
Company Information
Morgan light weight TJM Insulation Brick for furnace insulation
Our Competitive Advantage:
1.Competitive Price. Make the products competitive in your market.
2.Abundant Experience. Prevent cracks and twist in magnesia carbon bricks.
3.Different Moulds. Save mould fees for you.
4.Strict Quality Control. Meet clients’ quality requirement.
5.Large stocks. Guarantee prompt delivery.
6.Professional Packing. Avoid damage and secure the goods in transportation.
If you want light weight insulation brick please
Contact:Cindy Email: cindy@firebricks-supplies.com
Cell&Whats App: 0086-18623801271 Skype: cindy.tan929 QQ: 316024208
