Ladle Refractoriness Degree 1770° Refractoriness 2000° Slit Type Bottom Argon Slot Plug

Place of Origin : China

Shape : Block

Material : Alumina Spinel

Al2O3 Content (%) : 90-95%

MgO Content (%) : 0-3.5

CaO Content (%) : 1.3-2.5

Refractoriness (Degree) : 1770°< Refractoriness< 2000°

CrO Content (%) : 0-3.0

Model Number : HT-TQZ

Brand Name : HONGTAI

Product name : Slit Type Ladle Bottom Argon slot plug

Application : Steel Industry

Color : light Grey

Size : Customized Size

Raw material : Alumina Spinel

Keyword : slot plug

Bulk density(g/cm3) : 3.0g/cm3

Cold Crushing Strength(MPa) : 80~100

Advantage : High Temp Performance

Certificate : ISO9001:2008

Price : $1.50 - $8.50/pieces

Contact Now

Product Description

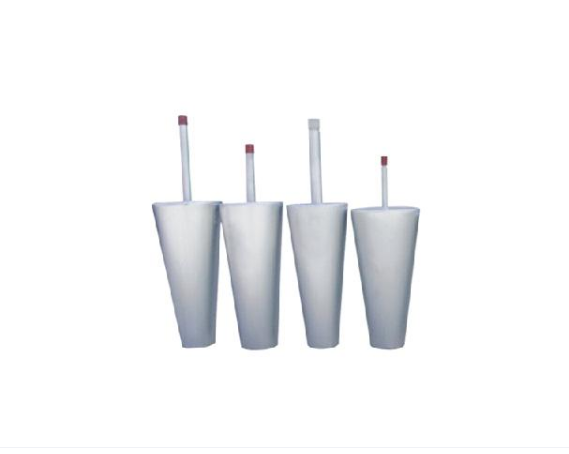

High Quality Slit Type Bottom Argon Slot Plug used in Ladle

Ladle used Slot plug brick is a new product with high life, energy saving and consumption reducing. It has reasonable structure design, good thermal stability, erosion resistance, erosion resistance, permeability resistance, high blowing rate, safe and reliable operation, long service life, etc.

Ladle Refractoriness Degree 1770° Refractoriness 2000° Slit Type Bottom Argon Slot Plug

Characteristic

High Quality Slit Type Bottom Argon Slot Plug used in Ladle

Ladle used Slot plug brick featured with the advantages of:

1. durable thermal strength,
2. high thermal shock
3. anti-erosion and anti-scouring property.
4. long service life
5. high purging rate
6. high working safety standard

Ladle Refractoriness Degree 1770° Refractoriness 2000° Slit Type Bottom Argon Slot Plug

Specification

High Quality Slit Type Bottom Argon Slot Plug used in Ladle

Ladle used Slot plug brick specification:

Item HT-TQZ1 HT-TQZ2 HT-TQZ3 HT-TQZ4 HT-TQZ5
Chemical(%)≥ AL2O3+MgO+Cr2O3 94 93 94 - -
AL2O3+Cr2O3 - - - - -
AL2O3+MgO+ZrO2 - - - 96 -
AL2O3+MgO - - - - 94
Bulk Density,g/cm3 ≥ 1500°*3h 3.00 3.10 3.20 3.10 3.00
Cold rupture strength(MPa) ≥ 1500°*3h 12 15 20 18 10
Cold crushing strength MPa ≥ 1500°*3h 80 80 100 100 80

Ladle Refractoriness Degree 1770° Refractoriness 2000° Slit Type Bottom Argon Slot Plug

Application

High Quality Slit Type Bottom Argon Slot Plug used in Ladle

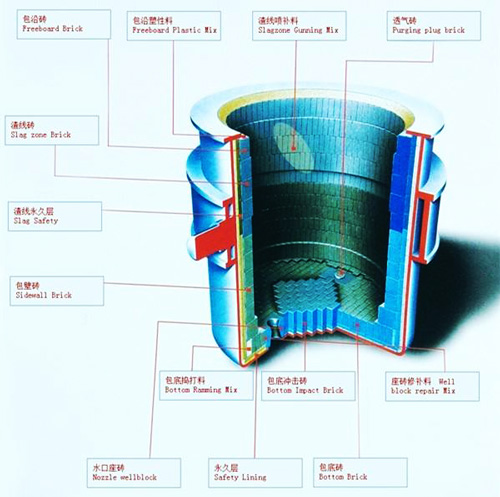

Ladle used Slot plug brick applications of this product include steelmaking LF, LF-VD, CAS-OB, refine ladle and continuous casting ladle argon purging techniques.

Ladle Refractoriness Degree 1770° Refractoriness 2000° Slit Type Bottom Argon Slot PlugLadle Refractoriness Degree 1770° Refractoriness 2000° Slit Type Bottom Argon Slot Plug

Packaging & Shipping

Ladle Refractoriness Degree 1770° Refractoriness 2000° Slit Type Bottom Argon Slot Plug

Packing:

Standard export wooden pallet with cardboard and PET strap.

1. Strong packing will protect the goods from any possible damage during transit.
2. Solid packing and overall stuffing can prevent the cases from vibration and jarring.
3. We must take necessary precaution that the packing can protect goods from pilferage or rain.
4. We can confirm that we take every possible precaution to ensure that our products reach our customers all over the world in prime conditon.

Shipping:

By vessel or by train from any Chinese port, Samples can be delivered by International express.

Delivery:

15-30 days working day for large quantity. The shipment we will arrange as soon as possible. Of course, if it is a custom products, the shipping time will delay.
Sample:

Usually by EMS, DHL, UPS, TNT, FedEx. Anyway you like. Bulk order: Usually by sea.

Payment:

It can be through T/T, L/C at sight. The specific terms determined according to the quantity of the goods, etc.
Your inquiry related to our product & price will be replied within 24 hours.
Export:
Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be approved by our clients.

Company Information

Henan hongtai kiln refractory co., LTD. is establised in 2012,located in Xinmi City, 40 kilometers southwest of Zhengzhou City in Henan Province, close to JingGuang,Longhai railway lines, with road transport facilities.Rich resoures of Refractory materials, adequate and qualified fuel in this area, provide unique conditions for refractory production,shipping and refractory industry development.

By the tirelless pursuit and development, our company has more than 280 empoyees at present, including 26 technical egineer, 18 senior titles, 8 juniour titles.Equipped with computer equipment system, one intelligent high-temperature tunnel kiln,three fully automated high-temperature energy-saving environmental protection shuttle kilns and one automatic unshaped refractory production line, the production capacity of refractory materials can be 60,000 tons per year and widely used in metallurgy, glass, ceramics, cement and power chemical industry,ect. With stable and superior performance, our products are in great demand in more than 20 provinces and autonomous regions, and export to Russia, Brazil, Vietnam,Italy, South Africa, South , Thailand, Singpore, Indonesia and other contries.

Ladle Refractoriness Degree 1770° Refractoriness 2000° Slit Type Bottom Argon Slot Plug

Henan hongtai kiln refractory co., LTD. has been always adhere to the principle of "quality first, credibility first, users first, quanlity and efficiency", has won the honor of "national measurement of qualified units""service standardization standards unit",which are recognized by higher office, was rated as Henan Province Contract and Keeping Promises Company, and has passed through ISO 9001:2000 Quality Mnagement System Confirmatrion, In order to meet the needs of market developemtn, we establish a "production, learning,research"strategic partnership with High Temperature Research Institute of Henann University of Science and Tchnology,and maintain long-term technical cooperation with Luoyang refractory research Institutions, the Iron and Steel Desigh Institute, Wuhan Iron and Steel Design Istitute and other scientific research institutions.Constantly adjust the production process,update product quality,built a solid foundation for wining a higher market hornor. Besides,all staff of high and low temperature furnace desigh, installation, manufacture, commissioning capacity of the company commit to every client: According to the different needs of users, we will thank all users' care by better service,higher product quality!

Sincerely welcome new and old customers at home and abroad, cooperate friendly with us, hand in hand to create a better future!

Ladle Refractoriness Degree 1770° Refractoriness 2000° Slit Type Bottom Argon Slot Plug

Production Equipments:

Ladle Refractoriness Degree 1770° Refractoriness 2000° Slit Type Bottom Argon Slot Plug

Test Equipments:

Ladle Refractoriness Degree 1770° Refractoriness 2000° Slit Type Bottom Argon Slot Plug

Customer

The products are sold all over the country, as far as Vietnam, India, , Pakistan, kazakhstan, and other southeast Asian countries and regions.
